Domande frequenti sul sistema motore e l'alimentazione delle bici da carico elettriche

Welcome to Regen’s comprehensive guide on bici da carico elettrica power systems. We’ve organized the most common questions into categories—motor types, power & performance, battery & range, load handling, real-world use cases, and core concerns—followed by extended deep-dive topics.

Bici da carico elettrica Motore

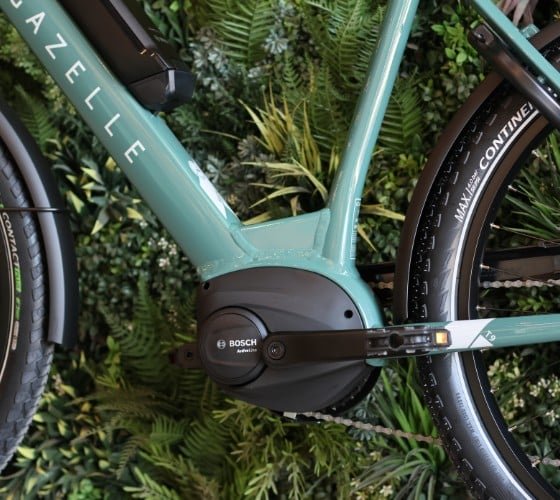

Figure: A mid-drive motor (Bosch Active Line) mounted near the bike’s pedals. Mid-drive units like this are popular on cargo e-bikes for their balanced weight distribution and efficient power use.

1. What motor is best for a cargo bike?

From my experience at Regen, the “best” motor for a cargo bike depends on how you’ll use the bike. Generally, there are two main motor types: motori a trazione centrale (located at the pedals/crank) and motori del mozzo (located in one of the wheels).

For heavy cargo loads or hilly areas, we find motori a trazione centrale are ideal because they leverage the bike’s gears to multiply torque . A quality mid-drive (like a Bosch Cargo Line or Shimano STEPS) can feel very natural and powerful, giving strong pull even on steep climbs. On the other hand, if your riding is mostly flat urban streets and you value simplicity, a geared hub motor can work great. Hub motors apply power directly to the wheel and often come with throttle options, making stop-and-go city riding easy . They tend to be lower maintenance for the drivetrain (since they don’t stress the chain) and can be more affordable.

In sintesi, for most cargo bikes carrying significant loads, a mid-drive is often “best” due to its high torque and efficiency, while a hub motor can be the best choice for lighter-duty urban use due to its simplicity and cost-effectiveness . We at Regen always assess the rider’s needs: if you’re hauling kids up steep hills, a mid-drive is our go-to, but for flat city errands a hub motor might suffice.

Riferimenti: Mid-drive advantages ; Hub drive pros/cons .

Related Reading:

Suggerimenti per la manutenzione del motore e della batteria

2. Mid-drive vs hub motor for cargo bike

We often get asked about the differences between mid-drive and hub motors on cargo e-bikes. Mid-drive motors (mounted at the bottom bracket) drive the pedals and use the bike’s gear system. This gives them a big advantage in torque and hill-climbing: by shifting into a low gear, the motor can spin faster and gain mechanical leverage for steep climbs . Mid-drives also keep weight centered and low on the bike, which improves balance—important when carrying cargo. Hub motors (in the wheel hub) directly power the wheel. They provide a more “push-button” feel (especially if a throttle is present) and don’t require you to think about gears as much.

For cargo bikes, a rear hub motor can work fine on flatter terrain with moderate loads, but on very steep hills or with heavy weight, a hub motor may strain or overheat if it’s not high-powered . Hub motors are generally less complex to service (swapping a wheel is easier than servicing a mid-drive) and don’t wear your chain or gears . However, they can make the bike feel back-heavy and, in some cases, put stress on spokes (rarely, heavy torque can loosen or break spokes in the wheel) .

In sintesi, mid-drives are typically better for cargo bikes facing hills or heavy loads (efficient power use, high torque, natural feel), while hub motors can be perfectly fine for everyday flat commuting or lighter loads (simpler and often cheaper) . Here at Regen we lean toward mid-drives for our family and freight-oriented models, but we acknowledge that a robust hub motor system (especially a high-torque geared hub around 500–750W) can serve well for urban deliveries on flat ground.

3. Is a mid-drive motor better for heavy loads and hills?

In our view, yes – mid-drive motors are generally better suited for heavy loads and hilly terrain. The reason is how they deliver power. A mid-drive motor sends power through the bike’s chain, allowing you to use the bike’s gearing. When you drop into a low gear, the mid-drive motor can spin faster and deliver higher torque to the rear wheel, making climbs easier . For example, the Bosch Cargo Line mid-drive (used on many cargo bikes) outputs up to 85 Nm of torque and is specifically tuned for hauling loads uphill . This means even with a child or groceries on board, a mid-drive can tackle steep hills at a steady pace.

Additionally, mid-drives are positioned centrally, which keeps the bike balanced when carrying weight. I’ve ridden fully-loaded cargo bikes with mid-drives up steep slopes and found that, as long as I’m in the right gear, they climb reliably without overheating. By contrast, a hub motor under the same strain might slow down or run hot on a prolonged hill if it’s not a very powerful one . Mid-drives also handle stop-and-go with heavy cargo well – they can leverage a low gear to get the bike moving from a standstill (some models even have a “boost” for starting).

This all translates to a smoother experience when you’re carrying kids or lots of cargo in hilly areas. So, for heavy loads and hills, mid-drive is usually the better choice – it’s the reason we equip our flagship cargo models with high-torque mid-drive units.

Riferimenti: Mid-drives strong on hills ; Example of 85 Nm cargo mid-drive for steep climbs .

4. Is a hub motor better for everyday urban riding?

For everyday urban riding with a cargo bike (especially on mostly flat ground), a hub motor can be a very practical choice. We often say that hub motors shine in regular city commutes and stop-and-go traffic. Why? First, hub motors are simple and user-friendly. You just press the pedal (or twist the throttle, if available) and the motor in the wheel provides a steady push. In a flat city environment, a 500W or 750W geared hub motor can easily keep up with traffic and carry moderate cargo loads without issue . Many urban riders appreciate that hub motors require minimal interaction with the bike’s gears – you don’t necessarily need to downshift at every red light, since the motor isn’t dependent on gear ratio. Also, hub systems often come with a throttle in markets that allow it, which means you can get moving from a stop quickly (helpful at busy intersections).

Another urban advantage is maintenance: a rear hub motor doesn’t add stress to your chain or derailleur, so those parts might last longer . We have customers who love that their hub-motor cargo bikes feel like “twist-and-go” scooters for city errands. That said, one thing to keep in mind is weight distribution—hub motors add weight to the wheel, so the bike’s handling is a bit different (it can feel slightly back-heavy if it’s a rear hub). But overall, for everyday urban riding on relatively level terrain, a good hub motor is indeed a great, convenient option, often at a lower price point than mid-drives .

In our lineup, we recommend hub drives for riders who mostly do flat city commutes, value simplicity, and don’t routinely max out the cargo capacity.

Riferimenti: Hub motor pros (less drivetrain wear, cost)

5. Which motor brands are most reliable (e.g. Bosch, Bafang, Shimano)?

At Regen we’ve worked with many motor brands, and a few stand out for reliability. In the mid-drive category, Bosch is often regarded as a gold standard. Bosch motors (like the Cargo Line, Performance Line, etc.) are known for robust engineering and long service life – it’s common for Bosch mid-drives to last thousands of kilometers (5,000–20,000+ km) with minimal issues . Bosch also supports their systems for years (they commit to supplying spare parts for at least 10 years), which adds to their real-world reliability.

Shimano (with its STEPS mid-drive systems) is another top-tier brand. Shimano motors are very smooth and also quite reliable in our experience, with a strong service network in Europe. They might not have quite the raw torque of the Bosch Cargo Line, but they are solid units built to last.

Bafang is a popular brand especially in the hub motor and DIY mid-drive space. Bafang offers everything from small 250W motors to powerful 1000W setups. They are generally considered “workhorse” motors – reasonably durable and affordable . We’ve seen Bafang geared hub motors go well past 5,000 miles (8,000 km) without major problems . However, anecdotal data suggests that on average, Bosch and Yamaha mid-drives might have a slight edge in long-term reliability over some of Bafang’s mid-drive units .

Yamaha is another reliable mid-drive brand worth mentioning: their PW series motors are often used in cargo bikes and have a good reputation (high torque and dependable).

In sintesi, Bosch and Shimano (and Yamaha) are top contenders for reliability and support, often chosen by premium European e-cargo bike makers . Bafang is also quite reliable, especially considering how widely used their motors are – they offer great value and solid performance, though support depends on the bike manufacturer. In Regen bikes, we use Bosch and Shimano for high-end models and Bafang for some value-oriented models, confident that all can be very reliable with proper use. Riferimenti: Bosch longevity data ; Reliability comparisons (Bosch vs others) ; Bafang reputation .

Power & Performance

6. How much power do I need for an electric cargo bike?

The power you need depends on your typical load and terrain. In Europe, most e-cargo bikes use a 250W motor due to legal limits, but don’t be fooled by the number – a high-quality 250W mid-drive can deliver a lot of assistance (often peaking much higher than 250W in short bursts) . For flat city riding with light to moderate cargo, 250W is usually sufficient, especially if it’s a mid-drive from brands like Bosch, Shimano, or Yamaha . These systems cleverly use gears to maximize torque, so they “punch above” their wattage class. For example, our 250W mid-drive Regen bikes can haul two kids and groceries on level ground or gentle hills without issue.

If you regularly tackle steep hills or carry near the bike’s max load, you might find the standard 250W struggles a bit. In that case, looking at higher-power options (if your region allows) is wise. In the US or other areas, cargo e-bikes often come with 500W or 750W motors, which provide stronger acceleration and can maintain speed better on hills. As a rule of thumb I tell riders: for hilly areas or very heavy cargo (150+ kg combined weight), aim for the higher end (500–750W) so the bike isn’t underpowered . Conversely, for mostly flat terrain and lighter loads, 250W to 500W is plenty.

It’s also about torque: a motor’s torque (measured in Newton-meters) is crucial for moving cargo. A 250W mid-drive with 80 Nm torque will outperform a 500W hub with 40 Nm on hills. Most cargo e-bikes have high-torque motors in the 70–90 Nm range.

In sintesi, 250W is enough for many everyday cargo needs (especially with a good mid-drive), but if you face steep hills or want extra speed and acceleration, consider 500W or 750W. At Regen, we ensure our 250W systems have high torque, and for those needing more, we offer upgraded motors where legal. Riferimenti: Mid-drive efficiency (250W vs 750W hub) ; High-power recommendation for steep climbs .

4. Is 250W enough for a cargo bike?

It may surprise you, but 250W can indeed be enough for a cargo bike in many situations. The key is the design and quality of the system. European regulations cap motors at 250W continuous, so brands have optimized these motors to perform impressively. For instance, a 250W Bosch or Shimano mid-drive can output high peak power and up to ~85 Nm of torque, which in practice hauls loads up hills effectively . At Regen, our 250W-equipped cargo bikes routinely carry two children plus baggage. On flat ground or mild inclines, they cruise smoothly. Even on steeper hills, if you shift to a low gear, a good 250W mid-drive will get you up (albeit you might be going slowly on the very steep parts, but it will climb) . The phrase “250W” can be misleading because that’s a nominal continuous rating.

Many 250W mid-drive systems briefly pull 500W+ when needed (within legal assist limits). Users often report that these e-bikes “feel” much more powerful than the number suggests . However, there are a few caveats: if it’s a 250W hub motor (common in some markets), it may struggle more on hills with heavy cargo since hub motors can’t leverage gears . In those cases, riders sometimes have to pedal harder or go very slowly up steep sections.

For mostly flat urban use, a 250W hub is fine, but on big hills with max load it can be borderline. So, if you’re in a hilly region and limited to 250W by law, I strongly recommend a mid-drive for the best experience . All in all, 250W is enough for a cargo bike for typical everyday riding (especially with a quality mid-drive system) , but it reaches its limits on extreme hills or with near-maximum weight. We design our EU-compliant bikes to perform within those limits by maximizing torque and using appropriate gearing. Riferimenti: High-performance 250W mid-drives ; 250W vs 750W real-world comparison .

5. How powerful should a cargo e-bike be?

In practice, a cargo e-bike should be as powerful as needed to comfortably handle your typical load and terrain. For most people in Europe, that means a 250W motor with high torque (since that’s the legal limit for an unregistered e-bike) – and fortunately, that level, when well engineered, is powerful enough for a lot of use cases . If you’re frequently carrying, say, 100 kg of cargo up moderate hills, you’ll want a motor that can deliver strong low-end torque (70+ Nm). Many of the best cargo e-bikes use motors specifically tuned for high assist, like the Bosch Cargo Line (85 Nm) or Shimano EP8 Cargo (85 Nm), which are 250W nominal but give up to 400% assistance to the rider .

These feel very powerful in use. On the other hand, if you have the option (and legal allowance) for more wattage – for example, you’re in North America or using the bike off public roads – a 500W or 750W motor can provide extra punch. A 750W hub motor, for instance, can maintain higher speeds up hills without you having to downshift as much, simply by brute force of wattage . So how powerful “should” it be? Enough that you rarely find yourself struggling. For a lot of family riders, that means at least a solid 250W mid-drive. For heavy-duty commercial cargo use or very steep terrain, motors in the 500–1000W range (often mid-drives like the Bafang M620 which can exceed 750W and 160 Nm) might be appropriate, though those aren’t street-legal in EU without registration.

In sintesi, a good guideline is 250W (with ~80Nm torque) minimum for flat/average conditions, 500W+ for hilly or demanding conditions. We ensure our bikes meet those needs: our EU models use high-torque 250W systems, and our USA models offer 750W for extra muscle. Riferimenti: Bosch Cargo Line 85Nm (high power assist) ; Hub vs mid real power needs .

6. Does the motor affect the riding speed of a cargo bike?

Yes—but only up to a point. In most European countries, electric cargo bikes are legally limited to a maximum assisted speed of 25 km/h (15.5 mph). This means the motor will stop providing assistance once you reach that speed. You can still go faster by pedalling or when going downhill, but the motor won’t help beyond the legal limit.

This speed cap applies regardless of how powerful the motor is. Whether you’re using a 250W or a 500W motor, the assisted top speed remains 25 km/h. So, the motor doesn’t control how fast you can go overall—it affects how quickly you get there, how easily you climb hills, and how well the bike handles heavy loads.

For most urban delivery or family transport needs, a 250W motor is more than sufficient. It provides smooth acceleration, steady support under load, and meets EU regulations for road use. More powerful motors may offer extra torque, but they won’t increase your top speed unless you’re using a different vehicle category like an S-pedelec (which has separate rules and requires registration).

7. Is a 250W motor enough for starting and climbing?

This is a concern we hear often, and the good news is that a well-designed 250W system can handle starting from a stop and climbing, especially on a mid-drive setup. For instance, the Bosch mid-drive motors (250W nominal) are programmed to give extra kick at low speeds – Bosch’s Cargo Line and Performance Line motors have very strong startup torque, which they specifically note as “extremely powerful start-up characteristics” . In practice, this means when you start pedaling from a standstill, the motor immediately supplies a surge of power to get the bike rolling, even with a load.

I’ve found that with my Regen 250W mid-drive cargo bike, I can start on an incline with two kids on board by using the lowest gear and the motor’s assist; it pulls away smoothly without stalling. The key is to use the right gear – mid-drives rely on you to shift into an easy gear for starting or climbing. If you do that, 250W (with high torque output) is enough to start on flats and reasonable hills. On very steep hills, you might still have to put in a fair bit of pedal effort in addition to the motor (no free lunch!), but the motor will significantly reduce the strain . One thing to note: many e-bikes also include a “walk-assist” or start-assist function that can help move the bike at ~6 km/h at the push of a button, useful if you need to get going from zero on a hill . If your bike has that, it effectively answers this question – even a 250W system can propel the bike slowly without pedaling to get you started.

For hub motors, 250W is a bit more borderline on steep starts; you might need to do more of the work until the bike gains some speed, because hub motors have less torque at zero rpm. In summary, yes, 250W (particularly mid-drive) is enough for starting and climbing in most cases, but technique (gearing, etc.) matters . We ensure our 250W bikes have programming to give a strong assist right off the line. Riferimenti: Mid-drive 250W providing strong start (85 Nm torque for uphill start) ; Walk-assist for starting uphill .

8. When should I consider upgrading to a 500W or 750W system?

You should consider a more powerful motor (500W, 750W, etc.) if you consistently find the standard 250W class system isn’t meeting your needs. Several scenarios come to mind:

(1) Frequent steep hills with heavy cargo – if you’re often slogging up long, steep inclines and the bike slows to a crawl or you have to really strain, a 250W might be maxed out. Upgrading to 500W or 750W will give you more continuous torque and keep you moving faster on those climbs .

(2) Desire for higher speed or acceleration – In regions where higher assist speeds are allowed, a 750W motor can assist beyond 25 km/h and provide quicker acceleration carrying weight. For example, in the US Class 3 e-bikes can go ~28 mph (45 km/h) with assist; doing that with a loaded cargo bike tends to need >500W sustained.

(3) Heaviest loads or towing – If you’re regularly at the bike’s payload limit (say 180-200 kg total including rider) or pulling a cargo trailer on top of that, more wattage provides necessary headroom so the motor isn’t constantly at full output (reducing stress on it).

In practice, many of our users in relatively flat areas are perfectly fine with 250W mid-drives – the circumstances requiring more power tend to be hilly terrain or a need for speed. It’s worth noting that in Europe, going above 250W means your bike will be classified differently (L1e-A or L1e-B mopeds) and require registration/insurance . But for a private conversion or off-road, one might upgrade to 500W/750W for the above reasons.

We usually advise: if you find yourself frequently using the highest assist level and still wishing for more, or if the motor often overheats or cuts out on hills (a sign it’s overworked) , then an upgrade to a higher wattage system is justified. I would also consider user weight: a very heavy rider plus cargo might benefit from extra power to maintain performance. In summary, consider 500W/750W if your riding involves high loads or steep hills that push a 250W system to its limits, or if legal speed limits higher than 25 km/h are desired for your commuting . At Regen, we stick to 250W for EU-legal bikes, but for special use cases we offer higher-power kits to customers who need that extra boost.

Riferimenti: Need for 750W in steep/rough terrain ; Motor stress signs on hills (overheating) .

Battery & Range

9. How far can an electric cargo bike go?

The range of an electric cargo bike can vary widely based on factors like battery capacity, assist level, terrain, rider weight, and cargo load. Generally, most modern e-cargo bikes with a standard ~500 Wh battery can go somewhere between 30 to 60 km (20 to 40 miles) on a charge under moderate load in real-world use . If you use a lower assist setting and ride gently on flat ground, you might stretch that to 80+ km. Conversely, if you’re using maximum assist, carrying heavy cargo uphill, range could drop to 20 km or less. Many cargo bikes offer the option of dual batteries for extended range. For example, the Tern GSD (a popular cargo bike) with dual 500 Wh batteries (1000 Wh total) has an advertised range of about 102–206 km (63–128 miles) in ideal conditions – realistically, perhaps ~80–100 km with mixed use. We’ve seen our customers with single batteries manage a full day of errands (~50 km) with a mix of assist levels before needing to recharge.

On the other hand, once when I hauled a very heavy load up steep hills on maximum turbo mode, I drained a 500 Wh battery in about 25 km. So “how far” depends. For planning purposes, I often tell people: assume roughly 1 km per 10 Wh of battery in mixed conditions with some cargo. So a 500 Wh battery ~ 50 km, a 700 Wh ~ 70 km, etc., as a baseline. Lighter loads or eco mode can double that; heavy loads or turbo can halve it. It’s also worth noting that wind and cold weather can affect range (strong headwinds or low temperatures will make the motor work harder, reducing distance). Most e-bike displays estimate range on the fly, which helps.

To summarize, a typical e-cargo bike might go 30–60 km on a charge with one battery , but your mileage will vary (pun intended) based on usage. If long range is crucial, consider an extra battery or a higher capacity battery upgrade.

Riferimenti: Example ranges (Tern GSD: 50–101 km with 500 Wh, 102–206 km with 1000 Wh) .

10. What is the battery range of a cargo e-bike?

The battery range of a cargo e-bike refers to how far you can travel on a single charge of the battery. In general terms, most cargo e-bikes equipped with a mid-sized battery (let’s say around 500 watt-hours) have a range of around 50 km (30 miles) give or take under typical use . This can increase or decrease based on several factors:

• Battery capacity (Wh): A larger battery stores more energy, so range increases roughly linearly. For example, if 500 Wh gives ~50 km, then a 625 Wh battery might give ~62 km under similar conditions, and a dual battery 1000 Wh setup might give ~100+ km .
• Assist level: Using Eco mode can double the range compared to Turbo mode. If I ride my cargo bike on the lowest assist just to take the edge off, I’ve exceeded 80 km on one charge. If I blast in highest assist carrying cargo, I might only get 30 km.
• Terrain and speed: Hilly terrain or riding at high speeds drains the battery faster. Climbing eats watt-hours quickly because the motor is working near full power for longer.
• Cargo weight: Heavier loads mean the motor has to output more power to maintain speed, which reduces range (roughly a 10–20% range drop for each additional 30–40 kg of load, based on some estimations) .
• Wind and weather: A strong headwind is like going uphill continuously – it will reduce range. Cold temperatures can temporarily reduce battery capacity as well.

Manufacturers often quote a wide range (like “up to 100 km”) because it’s highly variable. For instance, one of our Regen long-tail cargo bikes with a 700 Wh battery has been tested at up to ~120 km on flat ground, minimal assist. But in challenging scenarios it might be 40 km. As a practical answer: expect ~50 km from a 500 Wh battery under mixed conditions, and adjust from there based on your battery size and riding style . Many cargo e-bikes for family use are designed to easily cover a day’s typical errands or a commute on one charge. If you need more, swapping in a spare battery (or choosing a model with dual batteries) is the way to extend the range.

Riferimenti: Real-world range example (500 Wh ~50–101 km) ; Load impact on range .

11. How long does it take to charge a cargo bike battery?

Charging times can vary depending on the battery capacity and charger speed, but generally a standard e-bike battery (400–600 Wh) takes about 3 to 6 hours to fully charge from empty . For example, most 500 Wh batteries using a typical 4A charger will go from 0% to 100% in roughly 4.5 to 5 hours . If you only top up from, say, 50% to full, it will be quicker (2–3 hours). Here’s a breakdown with common numbers:

• A 300–400 Wh battery might charge in ~2.5–4 hours with a standard charger .
• A 500 Wh battery often takes ~4–6 hours .
• A 700 Wh battery might take ~6–8 hours with a normal charger.
• These assume the 2A–4A chargers that come with the bikes. Some chargers are faster: for instance, Bosch offers a 6A “Fast Charger” which can charge a 500 Wh in about 3 hours.

In Regen’s lineup, our chargers typically output 4 amps. So for a 500 Wh (0.5 kWh) battery: 0.5 kWh / (4A × 36V) ≈ 3.5 hours plus some extra for the final balancing phase – roughly 4.5 hours in practice. We advise customers that overnight charging is usually sufficient to refill the battery. If you have dual batteries, you usually charge them separately (either sequentially or with two chargers) – so double the time if doing back-to-back. Also note: batteries charge faster up to about 80%, then slow down for the last 20% (for cell balancing). So you might get to 80% in 3 hours and the remaining 20% takes another 1.5 hours. In a pinch, even a partial 1-hour charge can add a decent chunk of range (perhaps 10+ km, depending on battery and charger).

In summary: expect around 4–5 hours for a full charge of a typical cargo e-bike battery, and up to 6–8 hours for the largest batteries unless you have a fast charger . Plan accordingly, and you’ll rarely be caught out – many riders just charge each night.

Riferimenti: General charge times by capacity ;

12. What is the range of a cargo bike when fully loaded?

When a cargo bike is fully loaded (meaning near its maximum rated payload), the range will usually decrease compared to riding empty. As a rough estimate, you might see a 15-25% reduction in range under a full load versus a light load. For example, if a bike normally goes 50 km on a charge with just the rider, that might drop to around 35–40 km when you’re carrying a heavy load of kids or cargo. Why the drop? Heavier weight means the motor has to work harder, especially during acceleration and on hills, thus using more energy per kilometer .

In fact, one rule of thumb mentioned in industry discussions is about 10-20% less range for each additional 100 pounds (~45 kg) of weight . In practical terms, I’ve experienced this: my cargo bike with just me (no cargo) might barely dent the battery on a short trip, but when I load up two children and groceries (say +50 kg), I notice the battery gauge dropping faster on the same route. The bike still performs fine; it just uses more watt-hours per km. So a fully loaded trip that might be 40 km round might push the battery near empty, whereas without cargo I’d finish with maybe 30% left. It’s also worth noting that range under full load can be affected by how you ride: if you compensate for the weight by using a higher assist level or throttling more, you’ll further reduce range. Good practices like maintaining proper tire pressure (to reduce rolling resistance) and using lower gears (to keep motor efficient) can help maximize range even when loaded.

Some manufacturers provide online range calculators (Bosch has one) where you can input weight and it will adjust the estimate. Those often show a noticeable range drop as payload increases. In summary, a cargo e-bike when fully loaded will have a shorter range—perhaps 25-40% shorter—than when lightly loaded . Plan accordingly: if you frequently ride fully loaded long distances, you might want a bigger battery or a second battery to ensure you have the juice to get home.

Riferimenti: Impact of weight on range (10–20% reduction per additional 45 kg) ; Example: 40 miles normal might be ~32 miles fully loaded (20% drop) .

13. How does battery size (Wh) affect real-world usage?

Battery size, measured in Watt-hours (Wh), is essentially the fuel tank of your e-cargo bike. A larger Wh battery means more range – you can travel farther or use higher power for longer. In real-world usage, a higher capacity battery gives you more freedom: you can complete longer trips or multiple errands in a day without recharging, and you’re less likely to experience “range anxiety.” For example, if you upgrade from a 400 Wh to a 600 Wh battery (that’s 50% more capacity), you can expect roughly 50% more distance per charge . So maybe you go from 40 km per charge to 60 km under similar conditions. This scales fairly linearly: doubling battery capacity roughly doubles range . But beyond just range, battery size also affects how comfortable you are using the assist.

With a small battery, you might be conservative and use Eco mode more often to avoid draining it. With a large battery, you might freely use Turbo mode when you need to, because you know you have ample reserves. I’ve noticed that riders with dual batteries (for instance, 1000 Wh total) will liberally use high assist even for short hills, because they know they won’t run out. Battery size also plays into performance on very long or steep climbs – a bigger battery can sustain high power output for longer before voltage starts to sag. That can maintain performance toward the end of a ride. One trade-off: bigger batteries are a bit heavier and bulkier, and of course more expensive. But on a cargo bike, the weight penalty isn’t usually a big issue given the bike’s already sturdy build.

In sintesi, going to a larger Wh battery extends your range and allows more use of higher assist levels. It’s one of the most straightforward ways to enhance real-world usability of an e-cargo bike. For instance, a 500 Wh battery might get you 50–100 km depending on usage, whereas a 1000 Wh (dual) setup can reach 100–200 km , letting you do a full day’s heavy riding. At Regen we often recommend an extra battery for users who regularly do long routes or carry heavy loads, to ensure they always have that extra buffer.

Riferimenti: Linear range increase with Wh (500 Wh ~50-101 km vs 1000 Wh ~102-206 km) ;

Load Handling

14. Can electric cargo bikes carry heavy loads?

Absolutely – electric cargo bikes are specifically designed to carry heavy loads, and the electric assist makes it practical. Many e-cargo bikes can carry hundreds of pounds. For example, it’s common for a cargo bike to have a total weight capacity around 400 lbs (about 180 kg) including rider and cargo . That means if the rider weighs 70 kg, the bike might handle ~110 kg of cargo. Some heavy-duty cargo bikes (especially trikes or longjohn style) can handle even more, up to 600+ lbs (272 kg) total . In everyday terms, yes, you can carry your kids, groceries, and more. There are front-loading box bikes that fit 2-4 children (that’s easily 40–80 kg of kids) and long-tail bikes that can seat two bigger kids on the back.

The e-assist ensures you can get all that moving without your legs giving out. I routinely carry my two children (~50 kg together) plus backpacks on our electric cargo bike – it’s heavy, but the bike is built for it and feels stable. One thing to keep in mind: stability and braking. Cargo bikes have beefed-up frames, strong brakes, and often features like dual kickstands to manage heavy loads safely . They also have low centers of gravity or even three-wheel designs for stability. So yes, they can carry heavy loads with proper use. Always respect the manufacturer’s weight limit; exceeding it might strain components or make handling wobbly. But within spec, you’ll be amazed what these bikes can haul.

As a quick example: our Regen cargo trike model is rated to carry 100 kg in the front box in addition to the rider, and we have customers using it for deliveries of produce crates, etc. The electric assist truly shines in those scenarios, maintaining a reasonable speed even when fully loaded.

In sintesi, electric cargo bikes are very capable load haulers – think of them as the pickup trucks of the bicycle world, just remember to distribute weight evenly and ride cautiously when loaded.

Riferimenti: Typical weight capacity (300–600 lbs including rider) ; Example: 400 lbs total, meaning ~250 lbs cargo if rider ~150 lbs .

15. What’s the maximum weight a cargo e-bike can carry with power support?

The maximum weight (payload) varies by model, but many cargo e-bikes are rated for somewhere around 150–200 kg total weight (including rider) . To break that down: if the bike itself weighs ~30 kg and the rider is, say, 70 kg, that leaves about 50–100 kg for cargo. For instance, a common spec is “max load 180 kg” – that might translate to a rider plus 100 kg of cargo. Some examples: the Urban Arrow Family (a front-loader) has a max gross weight around 275 kg (including bike) which equates to roughly 125 kg payload after accounting for bike and rider. The Tern GSD is rated for 200 kg total including bike (so roughly 180 kg including rider & cargo) and folks routinely carry two kids + groceries on it.

On the more extreme end, certain commercial cargo bikes or trikes can carry more. I’ve seen specs of 300 kg or more total weight for heavy-duty cargo trikes . For example, some freight tricycles can handle 250 kg of cargo alone (often with dual batteries and very strong frames). But those are specialized. The question is probably focusing on typical consumer cargo e-bikes: which as mentioned, ~100–125 kg of cargo is usually the upper limit. It’s worth noting that “with power support” means the motor will assist effectively up to those weights. And indeed, cargo-specific motors (like Bosch Cargo Line) are tuned to still deliver high torque at low cadences to move big loads from a stop . Riders have successfully carried incredible things – appliances, multiple kids, even another adult passenger on some longtails. For example, longtail bikes often quote ~80 kg on the rear rack (enough for an adult passenger).

Always check the bike’s manual for maximum weight guidelines, as stability and frame integrity depend on not grossly exceeding those. So, to answer directly: many cargo e-bikes can carry on the order of 100 kg of cargo (in addition to the rider), with the most robust models going higher (150+ kg cargo) . The electric assist is designed to handle these loads at safe speeds.

16. How does load affect cargo bike performance?

When you add load to a cargo bike, you’ll notice changes in several aspects of performance: acceleration, braking, handling, and range.

• Acceleration and climbing: A heavier load means the bike accelerates more slowly and the motor has to work harder on hills. With an electric assist, this is mitigated, but you might still feel the bike is more sluggish compared to when it’s empty. For example, starting from a dead stop with a heavy load may require a bit more patience (and a low gear) as the system gets up to speed . On hills, you may need to use a higher assist level or accept a slower pace when loaded down.
• Braking: More weight = longer braking distances. Cargo bikes typically have strong disc brakes to compensate, but you should always account for extra momentum. I ride much more cautiously when carrying my kids versus solo, because I know the bike is heavier and needs a little more distance to come to a halt safely.
• Handling: The bike can feel “different” with a heavy load. For two-wheel cargo bikes, a heavy rear load might make the front feel light or wobbly until you get used to it. A front-box (bakfiets) bike with weight in the front can feel more sluggish in steering. If the load is well-distributed and low, the bike remains quite stable (designs anticipate this). But sharp turns and quick maneuvers should be done carefully when loaded. If you have a three-wheel cargo trike, heavy loads can actually improve stability up to a point, but you must corner slowly to prevent tipping. Overall, you adapt your riding – slower turns, smoother inputs.
• Range and battery: As discussed in Q22, heavier loads reduce range because the motor has to output more energy to overcome gravity and rolling resistance . You might see the battery drain faster with a loaded bike (maybe 15-25% less range for a fully loaded situation).
• Wear and tear: Indirectly, consistently carrying heavy loads can mean faster wear on components like brake pads (they’ll wear quicker stopping more mass) and tires (added weight can increase tire wear or risk of flats if not properly inflated). Also, the drivetrain sees more strain, especially if you mash pedals with a heavy load – keep the chain clean and consider stronger e-bike rated chains if you haul often.

However, electric assist largely compensates for the weight in terms of making it rideable. Without assist, a heavy cargo bike is very slow to get going. With assist, you’ll find you can still maintain normal commuting speeds on flats. Just climbing steep hills you may gear down more. In summary, load will make the bike a bit slower to start, slower to stop, and use more battery, and you should adjust your riding style accordingly . But modern cargo e-bikes are engineered for this, so while you feel the difference, they remain quite capable under load.

17. Does heavy load cause faster motor wear?

Carrying heavy loads does put more strain on the motor and related components, but a quality motor is built to handle it within reason. In general, using your e-cargo bike at or near its load capacity regularly will cause slightly more wear-and-tear on the motor and drivetrain over time compared to very light use. The motor has to work at higher power levels more often when hauling heavy loads, which can lead to higher operating temperatures. Prolonged high-temperature operation can, in the long run, affect things like electronic components or bearing lubrication. However, most reputable e-bike motors have thermal protection – they will reduce power or cut off if they get too hot, specifically to prevent damage . So if you push a heavy load up a long hill and the motor starts to overheat, it should protect itself (you might feel power drop until it cools). This safety means actual motor failure from heavy load is rare as long as you heed any warnings.

What we do see is that supporting components might wear faster: for mid-drives, the chain and gears wear faster with heavy load and high torque (the motor is essentially a strong “rider” straining the chain). For hub motors, heavy loads mean more stress on the wheel (spokes) and possibly the motor’s internal clutch/gears if it’s a geared hub. But again, these parts are usually beefed up in cargo-specific designs.

If you regularly haul near the max, it’s good to:

• Keep the motor in its efficient RPM range (shifting to low gear for hills) so it’s not lugging at low speed under massive load (that’s what generates the most heat) .
• Avoid long, slow crawls in high gear with heavy weight (worst case for motor heat).
• Let the motor rest occasionally on super long climbs if needed (most won’t need this, but just in case).

From a longevity standpoint, a Bosch or Bafang motor used heavily might need a bearing or gear replacement after many thousands of kilometers – but those are replaceable parts and heavy use will accelerate the timeline somewhat. One piece of evidence: there’s data from users showing mid-drive motors in cargo bikes lasting 5,000–10,000+ km without issue , but if someone constantly hauls maximum payload up hills (like a delivery rider), they might hit those service intervals sooner.

To answer succinctly: heavy loads increase the workload on the motor, which can lead to more heat and potentially marginally faster wear, but quality motors are designed for it and will not fail prematurely as long as you operate the bike correctly . Regular maintenance (and possibly slightly more frequent check-ups) is advisable if you’re always pushing the limits. In practice, you’ll likely wear out brake pads and chains faster than the motor itself.

18. Does maximum load affect range and safety?

Yes, carrying the maximum load on your cargo e-bike will affect both your range and certain safety considerations. In terms of range, as mentioned earlier, a heavily loaded bike requires more energy to move, so the battery will deplete faster. You might see a significant reduction in range at max load – often on the order of 20% or more less distance than riding with no load . For example, if you normally get 60 km on a charge lightly loaded, at max load you might only get ~45 km before the battery is empty . This is because the motor is working harder against the extra weight and possibly because you’ll use higher assist levels to compensate. It’s wise to plan shorter trips or have opportunity to recharge if you regularly run at max payload.

Regarding safety, a few points come up:

• Braking and handling: A bike at maximum load will have longer stopping distances (momentum is higher) and may handle more sluggishly. This means you need to ride slower and give yourself more room to brake. It’s important your brakes are in top condition when carrying heavy loads. Most cargo bikes have appropriate brakes (e.g., 4-piston hydraulics) to handle it, but the rider must still be mindful. Also, the bike’s balance might be different – for instance, steering can be heavier. If the weight is very asymmetrical or high up, it can increase the risk of tipping if turning sharply. Proper weight distribution (keeping heavy items low and centered) is key for safety .
• Frame integrity: Riding at the absolute max load, especially on rough roads, can stress the frame and components more. Manufacturers factor in a safety margin, but consistently overloading beyond max can risk frame or rack failures. Stick within the rated limit – it’s there for safe operation.
• Tire pressure and tires: Under max load, you want your tires inflated to the higher end of their range to avoid pinch flats or squirmy handling. Good quality, high-load-rated tires are a must for safety at high weight.
• Stability: Some bikes at full load (particularly front-loading bikes with a lot of weight in the box) handle differently. Practicing in a safe area to get a feel for fully loaded handling can increase safety. Three-wheeled cargo bikes won’t tip from weight, but they require careful cornering when loaded to prevent lifting a wheel.

One often overlooked aspect: secure your cargo. If you have a max load of cargo (like boxes or objects), ensure they’re strapped down. Shifting cargo can upset the balance or surprise you during a turn. Child passengers should always be buckled in.

In summary, carrying maximum load will reduce your range (plan for that) and necessitates extra caution for safety – slower speeds, longer braking distances, and careful weight distribution . The bike is engineered for it, but the rider’s behavior is what keeps it safe. If you follow guidelines, you can safely operate at max load – many family bikers and couriers do so daily.

Real-World Use Cases

19. Best e-cargo bike for hilly areas

For hilly areas, the best e-cargo bike is one that combines a powerful mid-drive motor, high torque output, and low gearing, along with a stable design for handling climbs and descents. In practice, bikes equipped with the Bosch Cargo Line motor (85 Nm) or similar high-torque systems shine in the hills . Models like the Riese & Müller Load, Tern GSD S00, or even the Urban Arrow Family (Performance CX or Cargo Line version) are often cited as top choices for hills. These all use mid-drive motors that automatically downshift or allow easy gearing to tackle inclines. For example, the Bosch-powered longtails and front-loaders can pretty much crawl up steep grades while carrying kids – I’ve heard from users in hilly cities like Seattle or San Francisco that these bikes make previously impossible routes doable. The Tern GSD in particular has a reputation as a hill-climbing beast in a relatively compact package, with its Bosch motor and the ability to add dual batteries (helpful because hills do consume more energy). If we’re talking conversion or kit, a cargo bike with a Bafang BBSHD 1000W mid-drive (for off-road/private use in hilly rural areas) is an absolute tractor for hills – but for street-legal in the EU, stick with the 250W mid-drives like Bosch/Yamaha which in tests outperform higher-watt hub motors on steep climbs thanks to gearing .

Factors to look for: A low gear ratio (some cargo bikes come with  Enviolo continuously variable hubs or  derailleur with a very large cassette cog, so you can spin easily up hills), and ideally dual battery if your hills are long or numerous (so you don’t run out of juice halfway). Also, strong brakes are important for coming back down! Among our customers, those in the Alps or very hilly countryside have gravitated towards mid-drive cargo bikes with names like R&M, Tern, Urban Arrow, Yuba (the Spicy Curry model has a high-torque Shimano or Bosch motor and is noted for hill capability). If you want a specific recommendation: the Riese & Müller Multicharger or Load series with Bosch Cargo Line motors are often considered among the best for hilly terrain – expensive, but they climb like mountain goats and have full suspension in some cases (the Load has rear suspension, nice for bumpy climbs and stability).

In sintesi, look for a cargo e-bike with a top-tier mid-drive (85 Nm class) and appropriate gearing – those will be the best for hills. Brands like R&M, Tern, Urban Arrow, Yuba fit that bill.

20. Electric cargo bike for child transport – is the power enough?

Transporting children is one of the primary uses of e-cargo bikes, and manufacturers have tuned these bikes to handle that task. Yes, the power is generally enough to carry kids, even up hills, as long as the bike is designed for it (which most are). A typical scenario: a rider plus two children (maybe 30–50 kg of kids) – virtually every electric cargo bike on the market can manage this on flat and moderate hills with a 250W mid-drive motor. I do this daily with my own bike. The assist makes it feel like you’re maybe just solo riding a heavy bike, rather than truly feeling the full weight of two squirmy passengers. On steeper hills, you will still feel the weight of the kiddos a bit, but if the bike has a strong motor (Bosch, Shimano, Yamaha, etc.), it will still get up the hill effectively . For example, the Babboe Curve Mountain (a popular family e-cargo trike) uses a Yamaha mid-drive and is specifically marketed as being able to tackle hills with kids onboard. Babboe states it “allows for an effortless ride in hilly areas, even when children are riding along in the box” . That matches our experience: the extra power of a quality mid-drive makes child transport a breeze in most areas.

Where might power be an issue? If you have an entry-level cargo e-bike with a weaker hub motor (say 250W hub) and you live in a very hilly neighborhood, you could find it struggling on a steep incline with two older kids unless you really help by pedaling hard. But most family-focused bikes avoid that by using good motors. Another factor is starting from stops – but again, motors like Bosch have torque sensors that give a big boost on startup, so getting moving at a green light even with 2 kids on board is fine. I find stability (balance) is more of a limiter than raw power when carrying children, and that just takes a little practice (and kids learning to sit still during climbs!).

Insomma, the power provided by modern e-cargo bikes is enough for child transport. They’re built for it. Just be mindful of overall weight if you’re carrying not just kids but also stuff like backpacks, etc., which can add up – but even then, the motor assist compensates greatly. Many families have replaced cars with these setups, which wouldn’t be feasible if the power wasn’t up to the task. Our Regen bikes, for example, use the same motors whether you’re carrying kids or cargo – no special extra power needed for kids specifically, as the standard system covers it.

21. How well do cargo e-bikes perform in bad weather or wind?

Cargo e-bikes are generally built to be all-weather machines, but there are a few considerations for bad weather and wind. In rain: Cargo e-bikes perform well. The electrical components (motor, battery, display) are typically water-resistant if not fully waterproof, so riding in the rain is fine. I ride mine in heavy rain with no electrical issues – you just want to avoid submerging them in deep water. The bikes often have fenders and sometimes integrated lights, making wet commuting practical. The main thing in rain is traction and braking: a heavier cargo bike might actually have an advantage in traction due to more weight on the tires, but you still need to brake earlier because wet conditions lengthen stopping distance. Many cargo bikes come with thick tread or puncture-resistant tires that perform decently on wet roads. For example, Ferla (a cargo bike brand) mentions their trike’s thick-tread tires are built to perform in rain and even snow . If you live somewhere with frequent rain, you can also get rain covers (canopies) for front-loading bikes or kids on the back, which keep passengers dry and somewhat reduce rain drag.

In wind: Cargo bikes can be both good and a bit challenging. On one hand, their weight and longer wheelbase give them stability in crosswinds – they’re not as twitchy as a normal bike, so a gust won’t throw you off as easily. On the other hand, cargo bikes, especially front-loader box bikes, present a larger side profile to crosswinds. If you have a big rain canopy or box, a strong side wind can catch it like a sail . I’ve experienced being pushed a bit by gusts when I had a large cargo load that caught wind. The trick is to lower your profile if possible (some canopies or covers can be removed in extreme wind). A long-tail bike with kids on the back is more streamlined than a box bike with a tall canopy. Headwinds: the e-assist really helps here. A strong headwind that would slow a regular bike to a crawl can be overcome by increasing assist – the motor compensates for wind resistance. Your range will drop though, because pushing against wind uses more power (similar to climbing a hill). I remember a day with 30 km/h headwinds – I had to use near Turbo mode to maintain speed, which used battery faster, but I still made it fine (just got less range).

Cold weather: not in the question but related – cold can reduce battery efficiency slightly. And if it’s icy, two-wheel cargo bikes need careful handling (some people use winter tires). Three-wheel cargo trikes have more stability on slick ground but can still slide.

Overall performance: Many people use cargo e-bikes year-round in places like the Netherlands (rain, wind) or Denmark. Bikes often have enclosed drivetrains or rust-resistant chains to handle wet. Electronics are sealed – I’ve ridden through downpours without a hiccup. And wind? You’ll feel it, but you’ll still make progress. I’d say cargo e-bikes perform as well as or better than regular bikes in bad weather, thanks to stability and power, but the rider must adapt: slower in turns, cautious braking, dress properly, etc. We at Regen ensure our bikes have at least IPx4 water resistance, meaning splashes or rain are fine.

In summary: Cargo e-bikes do quite well in bad weather. Rain is no problem (just maintain your brakes/chain). Strong winds can be challenging if you have a big box or cover catching the wind, but the motor help counteracts headwinds. Many come with accessories like rain canopies to protect kids/cargo, which also helps in foul weather (albeit those can catch wind) . Riding in wind and rain is part of life as a cargo biker, and with sensible precautions it’s perfectly manageable.

Riferimenti: Designed for rain/snow: Ferla cargo trike with thick tread tires and rain canopy ; Example of wind handling (heavier bike = dad acting as windbreak for kids) .

Core Concerns

22. Are electric drive systems expensive to maintain?

Not particularly – electric drive systems on e-bikes are designed to be low-maintenance. In the first few years of use, you’ll likely find maintenance costs similar to a regular bicycle, aside from eventual battery replacement. The motor itself is usually sealed and maintenance-free for thousands of kilometers . Manufacturers like Bosch and Shimano advertise essentially no scheduled maintenance on motors for the life of the product (Bosch says their motors are maintenance-free up to 15,000–20,000 km or more) . That means you shouldn’t have to open or service the motor unit routinely. The controller and wiring also generally don’t need any maintenance unless an issue arises (just keep connectors dry and clean).

The main wear components remain things like tires, brake pads, chain, cassette, and maybe wheel spokes – these are bike parts that wear due to usage, electric or not, though the added weight and speed of e-cargo use can make them wear faster. For example, you might go through brake pads a bit quicker because you’re stopping more mass, or chains might stretch faster because of the motor’s torque. But those parts are relatively inexpensive (a new chain, a set of brake pads, etc.) and are part of regular bike upkeep.

The battery is the costliest single component that will eventually need replacement. Most e-bike batteries last somewhere between 5 to 8 years or 500–1000 charge cycles before their capacity significantly drops . Replacing a battery can cost a few hundred to several hundred pounds/euros (maybe $500–$900 depending on brand and size) . If you keep the bike long term, budgeting for a new battery at, say, the 5-7 year mark is wise. But per year, that cost amortizes out. For instance, £700 for a new battery over 7 years is £100 per year.

Other electronic failures (motor or controller issues) are not common in the short-to-medium term, and often covered by warranty in the early years. We’ve seen cargo bike fleets run for years with minimal e-system issues. Should a motor need service after warranty, some shops can refurbish motors by replacing bearings, etc., which might be on the order of a couple hundred (still relatively rare maintenance) .

In terms of regular maintenance tasks: you might need to update firmware occasionally (usually done at the bike shop during a tune-up, often not charged extra), check that all connectors remain snug (especially after very bumpy rides), and that’s about it. If water ingress ever happens into a component, that would need fixing, but quality systems are well-sealed.

So, the ongoing maintenance cost of the e-drive isn’t huge. It mostly adds the eventual battery replacement to normal bike maintenance. I typically spend more on new tires and brake pads each year than anything to do with the electronics. The electricity to charge is pennies – maybe $0.10-$0.20 per full charge (very cheap compared to fuel) . In summary, no, electric drive systems aren’t very expensive to maintain. They’re built to run without much intervention. Just maintain the bike overall, and the e-part should chug along. Industry comparisons have shown e-bikes cost only a few cents per mile in maintenance and electricity , which is far cheaper than a car and only a bit more than a regular bike (mostly due to battery aging).

Riferimenti: Motor systems minimal maintenance first 15,000-20,000 km ; Battery replacement after several years as main expense ; Annual e-bike maintenance cost estimates ($100-200/year parts) .

23. Are motors, controllers, and batteries easy to replace or repair?

Motors, controllers, and batteries on e-cargo bikes are modular components, and they can be replaced or repaired, though the ease varies by system. In general, batteries are the easiest to replace: most e-cargo bikes have removable battery packs that you can swap out in minutes. If a battery dies or you want to upgrade, you simply unlock it from the frame and put a new one in. Getting a compatible battery (especially for branded systems like Bosch or Shimano) is usually the only challenge, as you must get the correct model. But it’s straightforward physically – literally click-in the new battery.

Controllers (the electronic brains, often a small box hidden in the frame or integrated with the motor for mid-drives) can also be replaced, but this tends to be a job for a bike technician rather than the end-user, mainly because it might involve opening up panels, disconnecting wire harnesses, and sometimes programming the new controller to talk to the system. However, it’s not overly complex for a professional: for hub motor kits, the controller is often a separate box – unplug old, plug in new. For mid-drives like Bosch, the “controller” is usually inside the motor casing, so if it fails, typically the whole motor unit is serviced or replaced as one piece.

Motors: Replacing an entire motor unit is definitely possible. For mid-drive motors, you’d remove the crank arms and mounting bolts and swap the motor. Bike shops do this regularly if a motor fails under warranty. It might take an hour or so labor. Some brands (like Bosch) often swap the motor core rather than repair internals in the field . For hub motors, replacing one is often as easy as swapping out the wheel that contains it . A rear hub motor wheel can be unplugged and removed like a normal wheel (plus disconnecting the motor cable), and a new motor wheel can be put in, then connect the cable. So in that sense, hub motors are quite easy to replace – basically a wheel swap .

As for repairing motors/controllers: some specialized services (and handy individuals) do repair at the component level – e.g., replacing bearings in a motor, or a blown capacitor on a controller board. But that’s not typically what a consumer does; usually one would replace the part with a new or refurbished one. There are companies that overhaul e-bike motors (re-grease, new bearings) if needed , which can be cheaper than a new unit. Controllers can sometimes be fixed if it’s a simple issue (loose connection, etc.), but often it’s swap-out as well.

The good thing is these parts are made to be serviced: connectors are usually plug-and-play. For example, I upgraded a controller on a hub-drive cargo bike to a higher amperage – it was basically unplug old controller cables (motor, battery, display, sensors), remove it, mount new controller, plug cables in. It took maybe 30 minutes with basic tools.

One consideration: if your system is proprietary, you’ll need the exact replacement from the manufacturer. But big brands keep spares for years. Bosch guarantees parts availability for 10 years for their systems , so even if a motor dies long down the line, you can get a replacement.

In summary: Yes, these major components are replaceable. Batteries are easiest user-level swaps. Controllers and motors can be replaced by a competent mechanic (or a skilled DIYer) without too much trouble, as they’re modular . Repair at component level is less common but possible via specialists. It’s akin to car parts – you’d swap a bad part rather than fix the microchips yourself. So while not quite “plug a USB in and fix” easy, it’s certainly manageable and part of normal e-bike maintenance cycle.

Extended Topics

Hub Motor vs Mid-Drive: Full Comparison for Cargo Bikes

Introduction: In the world of electric cargo bikes, one of the biggest decisions is choosing between a hub motor and a mid-drive motor. Each has its own strengths, and the best choice depends on how you plan to use your cargo bike. I’ve ridden cargo bikes with both systems here at Regen, and this full comparison will break down the differences in performance, maintenance, cost, and use-case suitability, specifically for cargo hauling.

1. Power Delivery and Ride Feel:

• Mid-Drive Motors: These are located at the center of the bike (by the pedals) and drive the crank. The defining feature is that they use the bike’s gears. This means at low gear the motor can spin fast and climb steep hills efficiently, giving a very natural assist that feels like “bionic legs.” Mid-drives on cargo bikes (like the Bosch Cargo Line or Shimano STEPS) have high torque outputs (often 75–85 Nm) , which translates to strong hill-climbing ability – a key factor for heavy cargo. The ride feel is typically smooth and responsive; because they measure your pedal force (torque sensor) and multiply it, it feels integrated. You do need to shift gears appropriately to get the best from it, much as you would on a regular bike .
• Hub Motors: Hub motors are in either the rear or front wheel (rear is more common for cargo). They directly drive the wheel and don’t care what gear you’re in. This can give a sensation of being pushed (if rear hub) or pulled (if front hub) along. For cargo bikes, rear hub is usually preferred to maintain steering traction. Hub motors often have a more binary feel – either you feel the motor or not – especially those with cadence sensors or throttle control. They can provide very zippy acceleration on flats since they apply full motor torque directly to the wheel from standstill. However, on steep hills, a hub motor might slow down significantly because it can’t downshift; the motor’s RPM drops and it can bog down . High-power hub motors (500W–750W) try to compensate with brute force. With cargo, if you stop on a hill, a hub motor bike may require a hefty push of the throttle and some pedaling to get moving again, whereas a mid-drive can just downshift and spin up.

2. Hill Climbing and Load Carrying:

This is crucial for cargo bikes.

• Mid-Drive: Reigns supreme on hills. Using the bike’s gears means even a 250W mid-drive can climb surprisingly steep grades with a load, albeit slowly, without overheating . They are the choice for very hilly cities. Mid-drives also maintain better efficiency under load; they won’t drain the battery as quickly on hills because you can gear down and keep the motor in its optimal RPM range .
• Hub Motor: For gentle to moderate hills, a sufficiently powered hub motor does fine. In fact, on short, punchy climbs, a high-watt hub can muscle up quickly. But extended climbs or very steep ones reveal weaknesses: the motor can overheat if it’s working hard at low speed for too long . Many hub motors have thermal protection that may cut power if they get too hot on a long hill with a heavy cargo. You can mitigate this by approaching hills with some speed or pedaling hard to keep speed up. Some cargo bikes with hub motors use gear-reduction hubs (internal planetary gears in the motor) to increase torque – e.g., the RadWagon’s 750W geared hub can handle decent hills but eventually, it might struggle with, say, a 15% grade with max load.

3. Starting from a Stop (Torque vs Throttle):

• Mid-Drive: When loaded, starting from zero (like at a traffic light) with a mid-drive requires you to be in a low gear, then the motor will strongly assist as you pedal. Many mid-drives also have a walk-assist which can help jump-start the bike. It’s generally effective – these systems often put out maximum torque at low cadences, meaning a good push to get you going .
• Hub Motor: Hub motors often shine in start-from-stop on flat ground, especially if a throttle is present. You can just hit the throttle and go, no gear shifting needed. This is convenient for city stop-and-go. However, on an incline, a low-speed start is hard on a hub motor; using a lot of throttle from a dead stop on a hill with cargo can heat it up and feels a bit slow until it gains RPM. The ideal is to give a few pedal strokes to help it.

4. Maintenance and Durability:

• Mid-Drive: Puts force through the chain and gears, so those components wear faster. You’ll replace chains, cassettes, or belt drives more often if you’re frequently applying the motor’s full power (especially with heavy cargo) . Also, mid-drives have more moving parts interacting with the bike’s drivetrain. However, mid-drive units themselves are very durable. They are sealed and require little direct maintenance (maybe a sprocket change every few thousand km). The increased drivetrain wear is the trade-off. A broken chain with a mid-drive is an inconvenience because without a chain, you lose motor drive too.
• Hub Motor: Does not stress the chain (since it doesn’t go through it). So your chain and gears last as they would on a normal bike or even longer if you tend to coast with motor power. Hub motors however mean more stress on spokes and the wheel . A heavily loaded rear hub motor wheel can go out of true or break a spoke if not properly built and maintained. So occasionally one might need wheel servicing. The motor itself is usually maintenance-free; maybe after very long term the internal gears might need relubrication or a bearing swap, but that’s rare and many hub motors go thousands of miles trouble-free . If something fails, hub motors are often easier/cheaper to replace as a whole.

5. Weight and Balance:

• Mid-Drive: Central, low weight keeps the bike’s handling balanced. This is great for cargo bikes because you might already have unusual weight distribution (kids in front box or rear rack). The mid-drive doesn’t further imbalance the bike. This improves stability, especially at low speeds or when walking the bike. It also makes flat tires or wheel maintenance simpler (wheels are just normal wheels without motors).
• Hub Motor: Adds significant weight to either the front or rear. A rear hub motor plus cargo load over the rear can make the bike rear-heavy – could affect traction on the front wheel when steering or braking. A front hub on a box bike adds weight to steering. However, a benefit is that the weight is at wheel axles, slightly lowering center of gravity too, but not as ideally placed as mid. For a long-tail with rear hub, you might feel some fishtail effect if hitting bumps at speed with a heavy load in back. That said, hub systems simplify the rest of the bike (no extra frame mounts for motor, etc.).

6. Noise: Mid-drives (especially Bosch/Yamaha) have a slight whir that increases with your pedal cadence – generally quiet, but audible in Turbo modes or when working hard. Hub motors, particularly geared hubs, also whir at low speed then become near-silent at cruising. Direct-drive hubs are almost silent but those are uncommon on cargo bikes due to lower torque at low speed.

7. Cost: Mid-drive e-cargo bikes are often pricier. The motors themselves cost more and the integration is more complex. Hub motor cargo bikes (like some entry-level models) can be significantly cheaper while still providing utility. If budget is a big factor and your terrain is moderate, a hub-motor cargo bike might be a smart choice. If money is no object or hills are big, mid-drive is typically preferred.

8. Use Case Recommendations:

• If you live in a very hilly area or plan to consistently carry heavy loads (kids, deliveries) up inclines, a mid-drive cargo bike is likely the better option . The efficiency and torque will pay off. Also if you value a more “bike-like” pedaling experience and plan to maintain the bike, mid-drive fits.
• If you are mostly riding on flat urban streets, doing start-stop errands, and want simplicity (or throttle use, where legal), a hub motor cargo bike can be extremely convenient . It’s like having that quick assist at the twist of a throttle to zip across an intersection with your groceries. Also, if you want to minimize maintenance on your drivetrain, hub is attractive.

9. Redundancy: One cool aspect – on a mid-drive, if your motor or chain fails, you’re pedaling a heavy bike with cargo (tough!). On a hub motor bike, if the motor fails you can still pedal (albeit hub motors often have some drag but geared hubs freewheel fine). Conversely, if your chain breaks on a hub motor, you could still use throttle to limp home since motor drives the wheel directly – a scenario to consider.

Conclusion: For cargo bikes, many experts lean towards mid-drives because of the demands of hauling weight (hence most high-end cargo models have mid-drives). But hub motor cargo bikes absolutely have their place and many happy users – they simplify riding in the city and cost less. In the end, best is what matches your daily needs: mid-drive for maximum versatility and hill prowess , hub motor for straightforward, reliable urban cruising with less gear-fuss . Both can handle cargo, but they do it with different styles.

How to Choose the Right Motor Power for Your Terrain

Choosing the right motor power for your terrain is crucial to having a pleasant e-cargo biking experience. Here’s a step-by-step guide from my perspective, having advised many Regen customers, on how to match motor power to the environment you’ll ride in:

1. Assess Your Terrain Profile: Start by honestly evaluating how hilly or flat your area is. Is it pancake-flat suburbia, rolling hills, or San Francisco-style steep streets? Also consider typical wind conditions (strong headwinds effectively act like hills). For mostly flat terrain, you can get away with lower power (250W class) easily . For hills, especially frequent or long ones, you’ll want more torque and possibly more wattage .

2. Know the Legal Limits in Your Region: In Europe and the UK, standard e-bikes are limited to 250W continuous and 25 km/h assist. If that’s your case, you’re often choosing between different 250W systems (so focus on torque and quality). In the US, you might have options up to 750W for street-legal use. So the decision could be: do I need that 750W or is 500W enough? It depends on terrain. For instance, if you’re in a U.S. city with steep hills (Seattle), a 750W might provide a smoother ride uphill compared to a 500W, especially with cargo.

3. Consider Your Load: Terrain and motor power go hand-in-hand with how much weight you carry. If you frequently carry the upper range of cargo (child + groceries, or multiple kids), lean towards a more powerful motor or one with higher torque. A 250W mid-drive can handle it but might be slow on very steep hills . If legal, a 500W or 750W might be warranted for heavy loads on hills to maintain speed without overheating.

4. Understand Motor Torque vs Power: For climbing terrain, torque (Nm) is more important than nominal wattage. Some 250W motors (mid-drives) have 80 Nm torque and climb great . Some 500W hub motors might only have 50 Nm and could struggle similarly on the steep stuff. So, look at the torque spec. If your terrain is hilly, aim for a motor with at least ~70 Nm torque. For flat land, torque is less critical – even a 40 Nm hub will do fine when you’re not fighting gravity much.

5. If Mostly Flat: A 250W system (hub or mid) is usually sufficient. The right motor power here might simply be the standard, because higher power won’t make much difference except higher top speed (if allowed) or acceleration. In flat terrain, even with cargo, you’re mainly overcoming rolling resistance and some wind. Example: Netherlands is flat, and 250W mid-drives with 50-60 Nm torque handle family bikes fine. You might choose a hub motor 500W in the US flatlands if you want a bit more pep or throttle use, but it’s not a necessity for flat ground.

6. If Mixed or Some Hills: If you have moderate hills occasionally, a quality 250W mid-drive will likely suffice (they can peak higher when needed) . But if it’s a cheaper system, or you just want extra buffer, a 350W–500W motor could give peace of mind for those hills. In the US, Class 1 e-bikes at 500W are common and handle moderate hills well, especially if the rider adds some pedaling.

7. If Very Hilly: This is where you think about maximum allowed power. In EU, you’ll still be at 250W but absolutely choose a mid-drive with high torque (like Bosch/Yamaha) and perhaps a dual-battery setup so you can use Turbo mode frequently. In places like Switzerland or very steep UK towns (e.g., parts of Bristol, Sheffield), folks still use 250W mid-drives but gear down and often opt for cargo-specific motors (Bosch Cargo Line). If you have the option (in freer-regulation areas) and lots of steep hills, a 750W mid-drive or a powerful hub like Bafang 750W might be warranted. This extra wattage will maintain higher speed on hills and run cooler doing it . For example, if you want to climb a 10% grade at 20 km/h with load, 750W might do it where 250W would do 10 km/h. Consider also any extremely steep driveway or short hills – a big motor might just brute force up, whereas a small one you may need to really pedal.

8. Choose Based on Lowest Common Denominator: Essentially, plan for the worst hill you regularly face. Choose a motor system that can tackle that without drama. It’s better to have some headroom. If the worst you face is a highway overpass or a gentle incline, you don’t need huge power. If it’s a quarter-mile of 12% grade each day, lean high.

9. Efficiency and Range Trade-off: Higher power motors can drain the battery faster, especially if you use that power frequently (though if it shortens climb time, it might even out). Just note that a 750W motor at full blast uses energy quickly. If terrain demands it, that’s fine, just ensure you have adequate battery capacity.

10. Test Ride if Possible: Nothing beats feeling it. If you can try a 250W vs a 500W on your terrain, do it. Some riders find 250W mid-drives more than adequate even on hills because they use gears well. Others try a loaded ride and go “hmm, I want a bit more speed up this hill” – then they know to opt for a bigger motor or different gearing.

11. Consider E-bike Classes and Modes: If you’re in a region with Class 1 (20mph no throttle), Class 3 (28mph assist) – a Class 3 usually has a higher power draw to hit higher speeds. If your terrain includes fast traffic or you want to go 25 km/h+ even on inclines, a higher power system (500W+) will achieve that. For leisurely pace, lower power is fine.

Example scenarios:

• City with short steep hills (like some neighborhoods): a mid-drive 250W high torque is chosen for its gearing ability.
• Rural area with long gradual grades and maybe gravel: maybe a 500W hub could suffice since grades aren’t super steep but lengthy (the extra wattage handles the duration).
• Extremely steep town: maybe consider an aftermarket mid-drive (like Bafang BBS02 750W) if legal, or a cargo bike with a “Mountain” model motor (some brands label their high-torque version as “for hilly terrain”).

Conclusion: Match the motor to the terrain:

• Flat = standard power (250W EU / 500W US) is okay.
• Rolling hills = standard to mid-level (250W mid or 500W hub).
• Steep hills frequently = high torque 250W mid in EU, or 750W class in US.
• Extreme terrain or off-road = possibly even higher (1000W mid) if allowed, but that’s beyond typical use.

Remember, torque and gearing matter as much as wattage. Always ensure the bike has appropriate low gears for your hills – that can sometimes compensate for less power. When in doubt, err on the side of a bit more power for terrain – it’s better to have the assist and not need it full-time than to be struggling.

Explaining the Link Between Battery Capacity, Load and Range

Battery capacity, load, and range are interlinked in a straightforward way: the more weight the bike carries (load), the more energy it uses from the battery per mile, reducing range . And the larger the battery capacity (measured in Watt-hours), the more energy you have available to counteract that and go further. Let’s break it down:

1. Battery Capacity (Wh) Basics: Battery capacity in Wh (Watt-hours) is like the fuel tank size. A 500 Wh battery can deliver 500 watts of power for 1 hour (in theory). If you draw 250 watts, it lasts 2 hours, etc. Now, range (distance) is how far you go on that energy. If your bike on average uses 20 Wh per km, a 500 Wh battery yields ~25 km. If it uses only 10 Wh per km, you’d get 50 km. What affects Wh per km? One big factor is the load and the associated effort to move that load.

2. Effect of Load on Energy Usage: When you carry more weight (be it cargo or even a heavier rider), the bike’s motor must exert more force to maintain speed, especially when accelerating or climbing. This translates to higher power draw from the battery. For example, imagine riding on flat ground at 20 km/h: with no cargo, maybe the motor only needs to output 100W (with you contributing some) . Put 50 kg of cargo on, and maybe it needs 150W to overcome the extra friction and weight. Over time that extra 50W draw will use the battery faster. There’s a… (continued) …

2. Effect of Load on Energy Usage: When you carry more weight (cargo or passengers), the bike’s motor must work harder to maintain speed, especially during acceleration and uphill. This translates to a higher power draw from the battery, reducing range. For example, climbing a hill with a heavy load might require the motor to output significantly more watts than the same hill with no load, draining more Watt-hours per kilometer. A rough rule: for roughly every additional 45 kg (100 lbs) of load, you might see 10–20% decrease in range . In practice, if you normally get 50 km on a charge solo, carrying a big load could cut that to perhaps 40 km because the motor is using more energy per distance. This is why you’ll often see your range estimate drop when the bike is fully loaded (or why riders with child seats notice the battery bars fall faster on hilly rides).

3. Battery Capacity Mitigates Load Impact: A larger battery (higher Wh) gives you more cushion to handle the extra consumption from heavy loads. Say your usage jumps from 10 Wh/km to 15 Wh/km due to cargo. If you have a 500 Wh battery, your range goes from 50 km (at 10 Wh/km) down to ~33 km (at 15 Wh/km). But if you had a 750 Wh battery, that same heavy-load ride could go ~50 km (750/15). So, bigger batteries effectively compensate for the extra drain of heavy loads. Many cargo bikes offer dual batteries for this reason: carrying kids/goods often, you’ll appreciate double capacity to maintain good range.

4. Riding Style and Assist Level: How you use the assist ties into this. If you carry a load and also use Turbo mode constantly, you’re doubly hitting the battery (high assist + high weight). In contrast, a careful rider in Eco mode can soften the impact of weight by contributing more human power. But realistically, with heavy cargo you may rely on higher assist, so it’s wise to have ample battery.

5. Real-world Example: Let’s put numbers on it. I have a 500 Wh battery on my cargo bike:

• With just me (no cargo), mostly flat, I consume about 8–10 Wh/km, giving ~50–60 km range.
• With two kids and hills, I’ve seen consumption rise to ~15–20 Wh/km. That brings range down to ~25–33 km.
• When I added a second battery (total 1000 Wh), that same heavy-load route (15–20 Wh/km) now can reach ~50–66 km before depletion . So the load effectively halved my range with one battery, but the second battery brought it back up.

6. Plan Accordingly: If you know you’ll often be at or near max load, consider a bike with a larger battery or the option to add a second. This ensures you’re not caught short on range. Conversely, if you rarely carry cargo or only short distances, you might not need the biggest battery available.

7. Don’t Forget Wind and Terrain: These factors act similarly to extra load. A strong headwind or lots of hills will increase power draw (as if the bike “feels” heavier). So they too reduce range, and a bigger battery helps there as well. Everything stacks: a heavy load + hills + wind + high assist will combine to use a lot of energy.

Conclusion: Battery capacity, load, and range have a direct relationship: higher load increases energy consumption and reduces range, but a higher capacity battery provides more energy to counteract that, extending range. Always interpret manufacturer range figures with your use-case in mind – those estimates often assume a certain rider weight and assist level. If you exceed that weight or use higher assist, expect shorter range . The beauty of e-cargo bikes is you can carry a lot, but knowing the impact on your battery will help you manage your rides (maybe carry a charger for longer trips, or invest in that second battery). In essence: big loads = more Wh/km; big battery = more km.
